How Are Clear Ice Blocks Made? The Freezing Process Behind Transparent Block Ice

• Clear ice blocks are made by directional freezing and flowing water, not by faster freezing. The freezing front moves from one face upward, pushing dissolved air and impurities ahead of it into the remaining liquid, which is then carried away.
• The process cannot be shortened without losing transparency. A faster freezing front overtakes the bubble removal mechanism and traps air in the block, producing a white core.
• In BAOCHARM’s configuration, a 3-ton batch takes about 22 hours freezing for center-hole blocks and about 44 hours for solid blocks, plus about 2 hours holding — the stabilization period before demolding — in both cases.
• The center hole does not change the freezing principle; it changes the freezing path and shortens the cycle. The block must still meet the same visual standard: no white core, no bubbles, no cracks.
• Cloudy or cracked blocks are usually a process deviation — freezing speed, water flow, water quality, or demolding stress — not a compressor defect.

Why does clear ice freeze from one direction instead of from all sides?

Clear ice freezes from one direction so that air and impurities are pushed ahead of the freezing front into the remaining liquid, where they can be removed. Multi-side freezing closes in from several faces at once and traps the last water — along with the bubbles and minerals concentrated there — in the center of the block.

In a brine ice block machine, the mold is surrounded by cold brine. Freezing starts from roughly five faces simultaneously. The ice shell thickens inward from every side, and the final pocket of unfrozen water sits in the middle. Everything the freezing front pushed ahead of it — dissolved air, minerals, suspended particles — ends up concentrated in that pocket. When it finally freezes, it forms the white core.

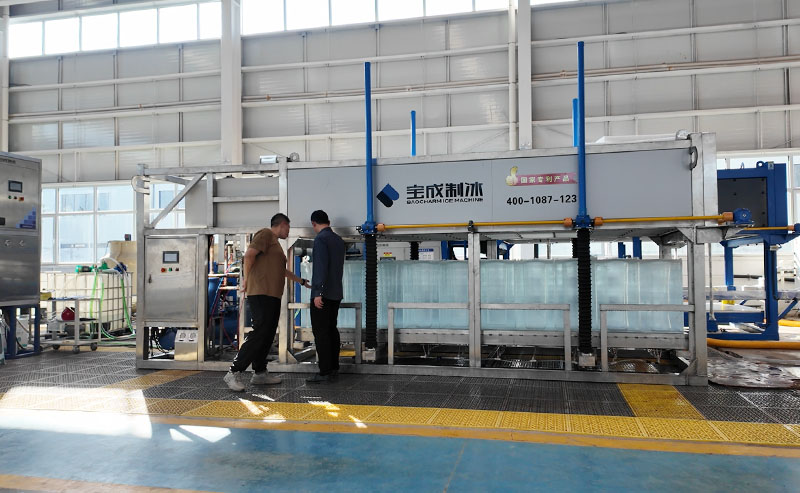

A direct cooling clear ice block machine changes the geometry. The evaporator sits on one face of the mold, typically the bottom. The freezing front advances upward through the full block thickness in a single direction. Air and impurities are not trapped in a center pocket; they are continuously pushed toward the unfrozen water at the top.

Directional freezing is the structural reason clear ice takes longer. One freezing front traveling the full block height is slower than five fronts closing in from the edges. The slower cycle is not an inefficiency — it is the condition that makes transparency possible.

Figure 1: Directional freezing vs multi-side freezing — one freezing front pushes bubbles upward and out; five fronts trap them in a center core.

How does flowing water remove bubbles and impurities during freezing?

Flowing water carries dissolved air and concentrated impurities away from the freezing front before they can be trapped in the ice. Without flow, the impurities pushed ahead of the freezing front simply accumulate in the last water to freeze, and the block ends up with a cloudy core despite directional freezing.

Directional freezing creates the path for impurities to leave; flowing water actually moves them out.

During freezing, water circulates over the freezing surface or through the mold in a controlled pattern. The flow serves two functions:

1. Bubble removal. Dissolved air released at the freezing front is carried away by the moving water rather than accumulating as visible bubbles in the ice.
2. Impurity dilution. Minerals and suspended particles pushed ahead of the freezing front are diluted and removed with the flowing water, rather than concentrating in the final unfrozen portion.

The flow rate is set around ice quality, not around cooling speed. Reducing the flow or shortening the cycle increases output, but it also increases the risk of bubbles and white core. The process is slow freezing with flowing water: both elements are required, and neither can be optimized away without losing transparency.

In BAOCHARM’s clear ice block machines, the acceptance standard is visual: no white core, no bubbles, no cracks. The same standard applies to solid blocks and to blocks with a center hole.

Figure 2: Flowing water path during freezing — bubbles and impurities are carried away from the freezing front instead of being trapped in the block.

Why does a center-hole block freeze faster than a solid block?

A center-hole block freezes faster because the through-hole reduces the volume of ice and changes the heat transfer path, shortening the distance the freezing front must travel. In BAOCHARM’s 3-ton configuration, a center-hole batch takes about 22 hours of freezing, compared with about 44 hours for a solid batch of the same capacity.

The hole runs along the long axis, from top to bottom. The through-hole does two things to the freezing process:

It removes volume. Less water means less ice to form, so the batch reaches completion sooner.

It shortens the heat transfer path. The freezing front does not have to travel through the full solid cross-section; the hole creates an additional boundary that changes how heat moves through the block.

The center-hole configuration produces a cycle roughly half as long as the solid-block cycle — about 22 hours versus about 44 hours in BAOCHARM’s 3-ton batch — plus about 2 hours of holding in both cases. The 6-ton model uses additional molds to complete a 6-ton batch in a comparable timeframe, rather than extending the cycle proportionally.

Usable yield is the row most often misread in the comparison table. Large clear ice blocks are usually cut into smaller pieces before use. The hole removes volume that would otherwise become part of those cut pieces, so the shorter cycle does not automatically mean better economics. It depends on the cutting plan.

If you are comparing solid and center-hole batches for a specific cutting plan, send us the target piece size and batch capacity. BAOCHARM will reply with the freezing cycle for your block type.

Why can’t the freezing cycle be shortened without losing transparency?

The freezing cycle is set by the time required for bubbles and impurities to leave the block. Speeding up the freezing front means the ice solidifies before the removal process completes, which traps air and minerals inside the block and produces cloudy ice with a white core.

The cycle time in a clear ice block machine is the result of four connected requirements:

1. One freezing direction means the freezing front travels the full block thickness, which takes longer than multi-side freezing.
2. Flowing water needs time to carry bubbles and impurities away from the freezing front.
3. Slow freezing prevents the freezing front from overtaking the bubble removal mechanism.
4. Controlled defrost releases the block without introducing stress that later appears as cracks.

Shortening any of the four — freezing direction, water flow, freezing speed, or defrost control — without adjusting the others means faster freezing, which means trapped air, which means cloudy ice. This is why clear ice machines are rated by batch capacity, freezing time, and holding time — not by a single daily output figure.

What causes cloudy or cracked clear ice blocks?

Cloudy ice usually means the freezing front moved too fast, the water flow was insufficient, or the water quality changed. Cracks usually come from uneven freezing, stress during demolding, or temperature shock after release. Both are process deviations, not necessarily machine defects.

The symptoms map to specific process conditions:

These are the same symptoms that the existing BAOCHARM article on cracks and cloudiness in large block ice addresses from the troubleshooting side. This article explains the process that those symptoms deviate from.

FAQ

Q: How long does it take to make a clear ice block?

A: It depends on block type and batch capacity. As a reference, BAOCHARM’s 3-ton batch takes about 22 hours of freezing for center-hole blocks and about 44 hours for solid blocks, plus about 2 hours of holding in both cases.

Q: Why is clear ice slower to freeze than regular block ice?

A: Because clear ice production uses directional freezing and flowing water to remove bubbles and impurities. The freezing front must move slowly enough for that removal to happen. Faster freezing traps air and produces cloudy ice.

Q: Does the center hole make the ice less clear?

A: No. Center-hole blocks must meet the same visual standard: no white core, no bubbles, no cracks. The difference is the freezing cycle and the usable yield after cutting.

Q: Can a standard block ice machine be modified to make clear ice?

A: The freezing principle is different. A standard machine freezes from multiple sides and is designed for output, not for bubble removal. Converting it would require changes to the mold, freezing direction, water flow, and control sequence — which is why clear ice machines are built as a separate configuration.

Q: What water quality is needed?

A: Water quality affects transparency. Dissolved minerals and suspended particles increase the load on the bubble removal process. The specific water treatment requirement depends on the local water source and should be confirmed during project design.

Q: Does hot gas defrost affect transparency?

A: Hot gas defrost releases the block by melting a thin interface layer at the mold surface. It does not change the ice body itself. Its role is to prevent cracking during demolding, which matters because clear ice is dense and brittle.

Once the freezing process is clear, the next decision is the system architecture.

The system architecture — direct cooling or brine — is covered next.

Send us the block type and target batch capacity. BAOCHARM will reply with the freezing cycle and process conditions for your configuration.
